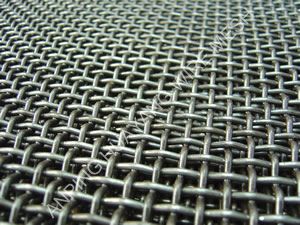

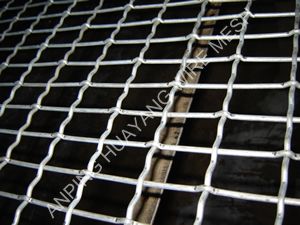

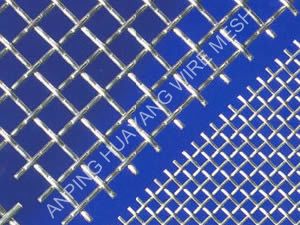

Crimped Wire Mesh
Crimped Wire Mesh is usually used as barbecue grill wire netting, made of corbon iron wire, galvanized steel wire or stainless steel wire.
Crimped Wire Mesh is woven after wire being crimped.
Standard mesh count per inch for crimped wire
Mesh:21mesh/18mesh/20mesh/16mesh/14mesh/12mesh
 |  |
 |  |
| Specification | ||||
| Wire diameter （mm） | Aperture（mm） | Wire diameter（mm） | Aperture（mm） | |
| 22.0 | 200 | 4.0 | 15 | |
| 20.0 | 180 | 3.2 | 30 | |
| 16.0 | 150 | 3.0 | 30 | |
| 16.0 | 120 | 3.2 | 25 | |
| 12.0 | 100 | 3.0 | 25 | |
| 12.0 | 90 | 2.6 | 30 | |
| 12.0 | 80 | 2.5 | 30 | |
| 12.0 | 75 | 2.6 | 25 | |
| 12.0 | 70 | 2.5 | 25 | |
| 10.0 | 60 | 2.6 | 20 | |
| 10.0 | 50 | 2.5 | 20 | |
| 9.0 | 45 | 2.0 | 25 | |
| 8.0 | 40 | 1.9 | 25 | |
| 7.5 | 38 | 2.0 | 20 | |
| 7.0 | 37.5 | 1.9 | 20 | |
| 7.0 | 35 | 2.0 | 18 | |
| 7.0 | 32.5 | 1.9 | 18 | |
| 6.5 | 32 | 2.0 | 15 | |
| 6.0 | 30 | 1.9 | 15 | |
| 6.0 | 27.5 | 2.0 | 12 | |
| 6.0 | 25 | 1.9 | 12 | |
| 6.0 | 20 | 2.0 | 10 | |
| 5.0 | 25 | 1.9 | 10 | |
| 5.0 | 22.5 | 1.6 | 15 | |
| 5.0 | 20 | 1.5 | 15 | |
| 4.5 | 22 | 1.6 | 12 | |
| 4.5 | 17.5 | 1.5 | 12 | |
| 4.5 | 15 | 1.6 | 10 | |
| 4.0 | 20 | 1.5 | 10 | |
