Grassland Fence
Material: high intensity galvanized steel wire
Surface treatment:
electro galvanzied;
hot dipped galvanized (zinc 60g-100g/m2, in humid area is 230-250g/m2.)
wire diameter
inner wire diameter: 1.8-2.5mm
edge wire diameter: 2.0-3.2mm
hole size
4.5+5+5.5+6+7+8 or we do as customer's request.
dimension

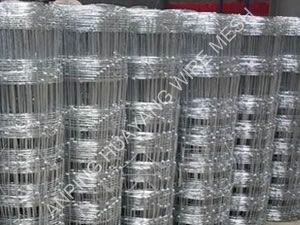

standard: 1x50m
Weaving and characteristic:

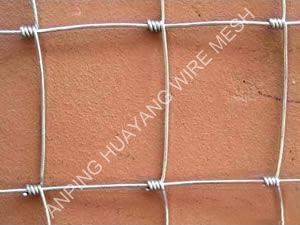

The product is made by automatic twisting and weaving steel wire ring in longitude and latitude. The prduct has smooth mesh, even opening, high flexibility, high strength, original structure, firmness and precision, resistance to sliding, pressure, shock and corrosion.
Using:

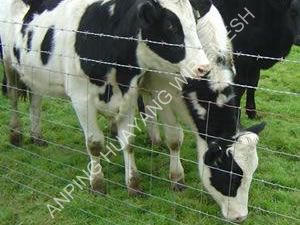

the product is widely used for protection and partition in such fields as grassland, meadow, husbandry(used for borders in fields and grassland for breeding of deer, cattle and other animals).
Num. | Specification mesh | Gross Weight | Set and bottom wire Diameter | In wire | Volume diameter (mm) | |
Type | Specification | |||||
1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2.0 | 270 |
2 | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 20.8 | 2.5 | 2.0 | 270 |
3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2.0 | 270 |
4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2.0 | 270 |
5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2.0 | 270 |
6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 23.9 | 2.5 | 2.0 | 270 |
7 | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 26.0 | 2.5 | 2.0 | 270 |
8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 | 2.5 | 2.0 | 270 |
9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2.0 | 270 |
10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2.0 | 270 |
