Steel Grating

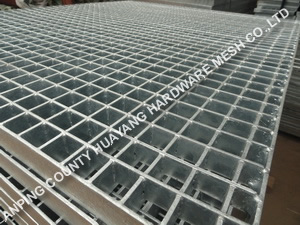

(1) Galvanized Steel Grating
Material: Mild Steel (Low Carbon Steel) or Stainless Steel
Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS.
 |  |
 |  |
 |  |
Surface Treatment: Untreated, Painting or Hot dip Galvanizing
Charaterristics: The installation has the advantages of simple construction, light weight, good impact resistance, good bearing capacity ability,rather large water displacement characteristics, corrosion and rust resistance.
Application: It is widely used in urban road, square, garden, wharf, airport, parking lot, highway, railway, industrial.
| Item No. | Bearing Bar Pitch | Cross Bar Pitch | Specification of bearing bar load width × hickness | |||||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 |
| ||||
| 1 | 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 |
| |||
| 2 | 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 |
| |||
| 3 | 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 | ||
(2)Plain Steel Grating
Plain Steel Grating uses thicker (1/4", 5/16", 3/8") and deeper bearing bars. Grating can be custom fabricated on request. Flattened Steel Grating is has the strength for use on airfields, highways, industrial floors, ramps, docks, truck terminals, parking lots, and specialty applications.
Plain Steel Grating is the most popular of all grating types due to its strength, cost-efficient production and ease of installation. It is the ideal materials for application such as airfields, highways, industrial plants, truck and bus terminals, parking lots and railroad yards. Common uses are flooring, driveways, subway an d tunnel ventilation grilles, curb inlet grates, ramps, docks, etc
NO | Flat Iron (h x t) | Pitch of Bearing Bar (BP) | Cross Bar | Pitch(CP) |
CF193 | 19*3 | 30 | 6" | 100 |
CF1945 | 19*4.5 | 30 | 6" | 100 |
CF253 | 25*3 | 30 | 6" | 100 |
CF2545 | 25*4.5 | 30 | 6" | 100 |
CF256 | 25*6 | 30 | 6" | 100 |
CF323 | 32*3 | 30 | 6" | 100 |
CF3245 | 32*4.5 | 30 | 6" | 100 |
CF326 | 32*6 | 30 | 6" | 100 |
CF383 | 38*3 | 30 | 6" | 100 |
CF3845 | 38*4.5 | 30 | 6" | 100 |
CF386 | 38*6 | 30 | 6" | 100 |
CF4445 | 44*4.5 | 30 | 6" | 100 |
CF446 | 44*6 | 30 | 6" | 100 |
CF5045 | 50*4.5 | 30 | 6" | 100 |
CF506 | 50*6 | 30 | 6"or 8" | 100 |
CF509 | 50*9 | 35.3 | 8" | 100 |
CF656 | 65*6 | 30 | 8" | 100 |
CF659 | 65*9 | 35.3 | 8" | 100 |
CF756 | 75*6 | 30 | 8" | 100 |
CF759 | 75*9 | 35.3 | 8" | 100 |
CF906 | 90*6 | 30 | 8" | 100 |
CF909 | 90*9 | 35.3 | 8" | 100 |
CF1006 | 100*6 | 30 | 8" | 100 |
CF1009 | 100*9 | 35.3 | 8" | 100 |

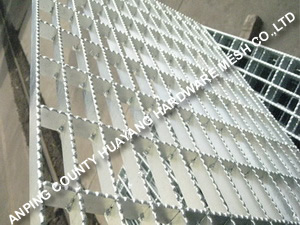

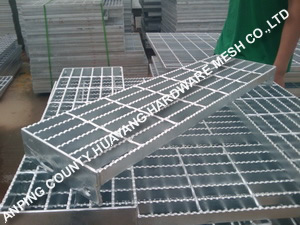

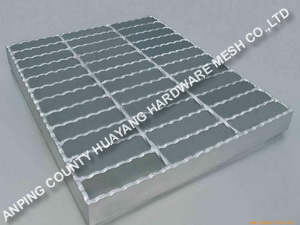

(3)Serrated Steel Grating Specifications (mm)
Steel Grating Size: 1m*6m standard type (special size and American standard size are also customizable)
Material: Low carbon steel (Q235)
Surface Treatment: Hot dip galvanizing, paint or no coating
Surface Shape: Planform, tooth shape and I shape
Quality Standard:
Steel Grating Standard: China YB/T4001-1998
America ANSI/NAAMM (MBG531-88)
Britain BS4592-1987
Australia AS1657-1992
Steel Standard: China GB700-88 / ASTM (A36) / BS4306 (43A)
Hot Dip Galvanizing Standard: China GB/T13912-92 / ASTM (A123) / BS729
Serrated Steel Grating Surface Treatment：
Untreated
Painting
Hot Dip Galvanizing
Serrated Steel Grating Application:
Widely used in power plants, refineries, sewage treatment plants, silos, chemical plants, highways, airports and docks and other platforms, walkways and gutter covers, stair step. Tooth steel grating which can be used for wet, slippery places, especially for offshore oil platforms
