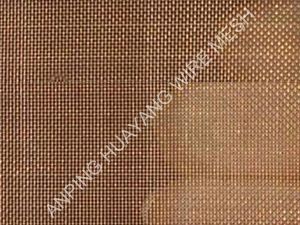

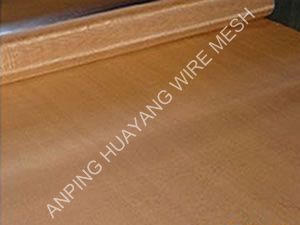

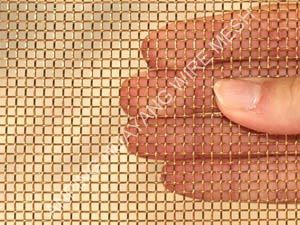

Phosphor Bronze Wire Mesh

Huayang Wire Mesh Co. produces phosphor bronze wire mesh (cloth), in width from 0.6m to 1.3m, in length from 15m to 100m.

Standard mesh counts per inch of phosphor bronze wire mesh (wire cloth):
6mesh/8mesh/10mesh/12mesh/14mesh/
16mesh/18mesh/20mesh/22mesh/24mesh/
26mesh/28mesh/

30mesh/32mesh/34mesh/36mesh/38mesh/
40mesh/ 42mesh/44mesh/46mesh/48mesh/
50mesh/60x50mesh/60mesh/70mesh/80mesh/
90mesh/100mesh

120x108mesh/120mesh/140mesh/150mesh/
160mesh /180mesh/200mesh/250mesh/300mesh/
325mesh/350mesh/400mesh/450mesh/500mesh

Specification Reference of Phosphor Bronze Wire Mesh (Cloth)

mesh
wire diameter
opening (mm)
SWG
mm
inch
6 22 0.711 0.028 3.522
8 23 0.610 0.024 2.565
10 25 0.508 0.020 2.032
12 26 0.457 0.018 1.660
14 27 0.417 0.016 1.397
16 29 0.345 0.014 1.243
18 30 0.315 0.012 1.096
20 30 0.315 0.0124 0.955
22 30 0.315 0.0124 0.840
24 30 0.315 0.0124 0.743
26 31 0.295 0.0116 0.682
28 31 0.295 0.0116 0.612
30 32 0.247 0.011 0.573
32 33 0.254 0.010 0.540
34 34 0.234 0.0092 0.513
36 34 0.234 0.0092 0.472
38 35 0.213 0.0084 0.455
40 36 0.193 0.0076 0.442
42 36 0.193 0.0076 0.412
44 37 0.173 0.0068 0.404
46 37 0.173 0.0068 0.379
48 37 0.173 0.0068 0.356
50 37 0.173 0.0068 0.335
60X50 36 0.0076 0.0076 -
60X50 37 0.0068 0.0068 -
60 37 0.0068 0.0068 0.250
70 39 0.132 0.0052 0.231
80 40 0.122 0.0048 0.196
90 41 0.112 0.0044 0.170
100 42 0.012 0.004 0.152
120X108 43 0.091 0.0036 -
120 44 0.081 0.3200 0.131
140 46 0.061 0.0024 0.120
150 46 0.061 0.0024 0.108
160 46 0.061 0.0024 0.098
180 47 0.051 0.002 0.090
200 47 0.051 0.002 0.076
250 48 0.041 0.0016 0.061
300 49 0.031 0.0012 0.054
325 49 0.031 0.0012 0.047
350 49 0.031 0.0012 0.042
400 49 0.031 0.0012 0.033
450 49 0.031 0.0012 0.029
500 50 0.025 0.0010 0.026
