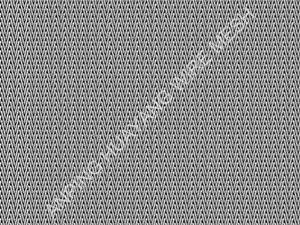

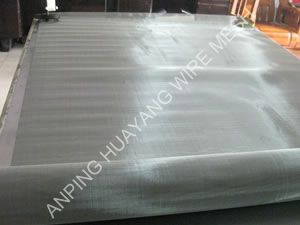

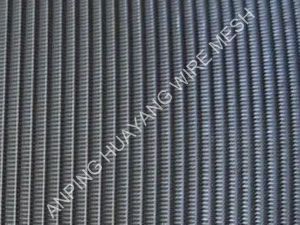

SS Dutch Woven Wire Cloth
Materials: Materials of Dutch Woven Wire Cloth is divided into Type 302, Type 304, Type 304 L, Type 316 and Type 316 L.
Property: Stainless Steel Dutch Woven Wire Cloth offers good wear-resistance, heat-resistance, acid-resistance and corrosion resistance.
Use: Stainless Steel Dutch Woven Wire Cloth is utilized as filter fittings for chemical industry, medicine, petroleum, telecom-communication, scientific research units and so on.
| SS Wire Mesh Dutch Weaving Specification | ||
| Mesh | Wire Dia. (MM) | Material(AISI) |
| 12meshX64mesh | 0.58/0.40 | 304 or 316 |
| 24meshX110mesh | 0.36/0.25 | 304 or 316 |
| 14meshX88mesh | 0.50/0.33 | 304 or 316 |
| 30meshX150mesh | 0.18/0.14 | 304 or 316 |
| 40meshX200mesh | 0.14/0.11 | 304 or 316 |
| 50meshX250mesh | 0.10/0.071 | 304 or 316 |
| 80meshX700mesh | 0.06/0.05 | 304 or 316 |
| 165meshX800mesh | 0.071/0.040 | 304 or 316 |
| 165meshX1400mesh | 0.05/0.032 | 304 or 316 |
| 200meshX1800mesh | 0.05/0.03 | 304 or 316 |
| 325meshX2300mesh | 0.030/0.025 | 316L |
| 400meshX2800mesh | 0.030/0.02 | 316L |
