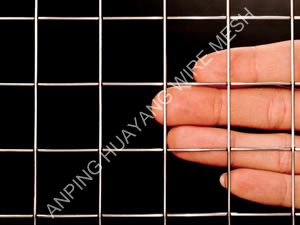

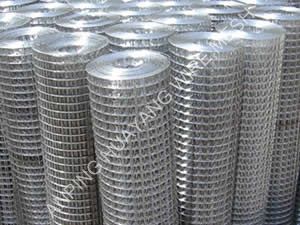

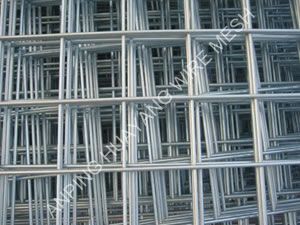

Stainless Steel Welded Wire Mesh
Materials: 316, 316L, 304L, 304HC, 304, 302 superior grade stainless steel and other steel materials
Processing: welding together of stainless steel wire in square opening
Advantages compare with other products:
1. High intensity anti-high temperature.
2. Better strength and strong integration
3. Flat & even surface and strong structure
4. Anti-rust property
5. Not easy to loosen even be cut into parts or exerted force on the parts
6. A long service life and the service life can reach to several decades
Assortments available:
1. Hot-dipped galvanized after welding;
2. Hot-dipped galvanized before welding;
3. Electro galvanized after welding;
4. Electro galvanized before welding;
5. Welded mesh, PVC-coated;
6. Welded mesh made of stainless steel.
Application:
Stainless steel welded wire mesh is traditionally utilized as guards in buildings and factories, as animal enclosure and fence in agriculture; it is also used in horticulture industry as tree guards, plant protection as well as other usages.
Specification:
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
| 1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| 2" x 3" | 50mm x 75mm | 14,13,16 |
| 3" x 3" | 75mm x 75mm | 12,13,14,15,16 |
| 2" x 4" | 50mm x 100mm | 13,14 |
| 4" x 4" | 100mm x 100mm | 13,14 |
